2G 3G 4G Triple Band GSM DCS WCDMA 70dB Mobile Phone Signal Amplifier Cell Phone Repeater for Europe
Faster 4G Internet(LTE 1800), enjoy fast upload and downlaod at your home or office
Faster 3G Internet, enjoy fast upload and downlaod at your home or office
Clear voice, no more missing call, reduce radiation of cell phone
 signal Booster Base Unit
 AC Power Cord
LPDA Outdoor Antenna
 Indoor Panel Antenna
13 Meters White 3D Coax. Cable
 Coverage: 300-500 square meters without barriers
 Improve Gsm 900 Lte 1800 and Wcdma 2100 at the same time
 Support more than 20 cell phones to use at the same time

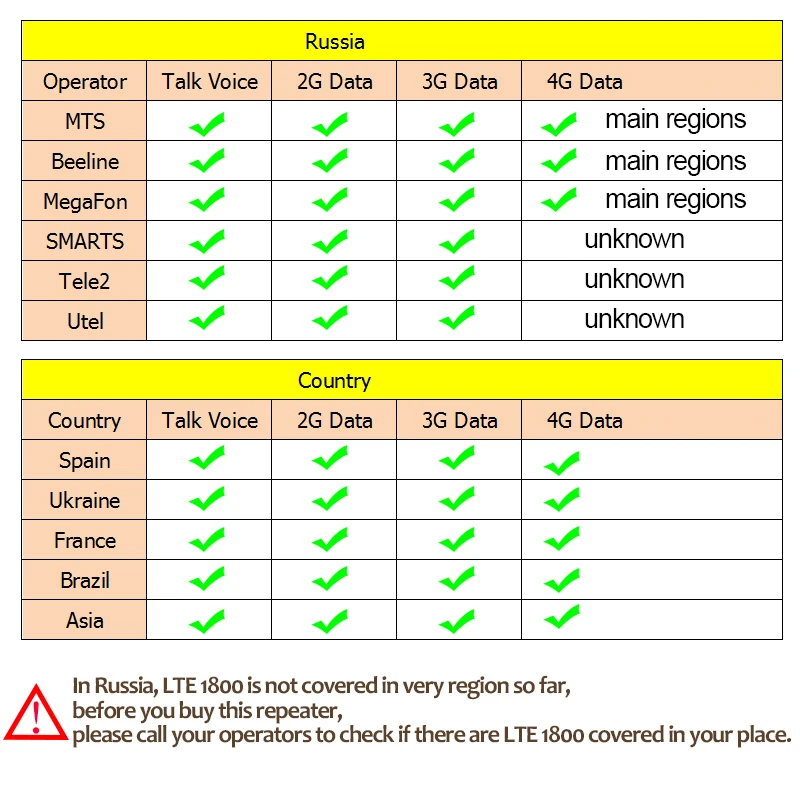

 Support different operators which has GSM 900 1800 or WCDMA 2100 frequency band
 Easy to install. This repeater set includes everything you need.
 LED signal light indicates the signal status.
 One Year Warranty.
Gain: 70dB (DL) ; 65dB(UL)
 GSM: up link 890-915mhz; down link 935-960mhz
DCS: up link 1710-1785mhz; down link 1805-1880mhz
WCDMA: up link 1920-1980mhz; down link 2110-2170mhz
Connector Type: N female connector
Log periodic antenna
Indoor panel antenna
13 meters cable N male connector to N male connector
Easy Setup in 4 easy steps!
[ 1 ] Mount the External Antenna where you have the strongest cell phone signal, typically on a roof or in an attic.
[ 2 ] Connect the internal antenna to the Amplifier Base Unit and place where you need improved signal. Indoor antenna should connect "MS" end of Amplifier. There should be a minimum of 2 vertical meters of separation between the Base Unit and External Antenna.
[ 3 ] Run the coax cable (10 meters) between the Base Unit and External Antenna. External antenna should connect with "BTS" end of repeater.
[ 4 ] Connect the power supply to the Amplifier Base Unit and plug into a power outlet and you are done!
