Mini 3G HDMI to SDI Converter Support 1080P 3G HD SD SDI for SDI Monitors With Power Adapter EU US UK AU Plug
Before you buy this product ,Please note the package box:
1.We have two kinds of package box ,one has the logo ( wiistar ) on the package box , the others one has not the logo ( wiistar ) on the package box .We will random arrange pack the package box.
Shows HDMI source on SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.

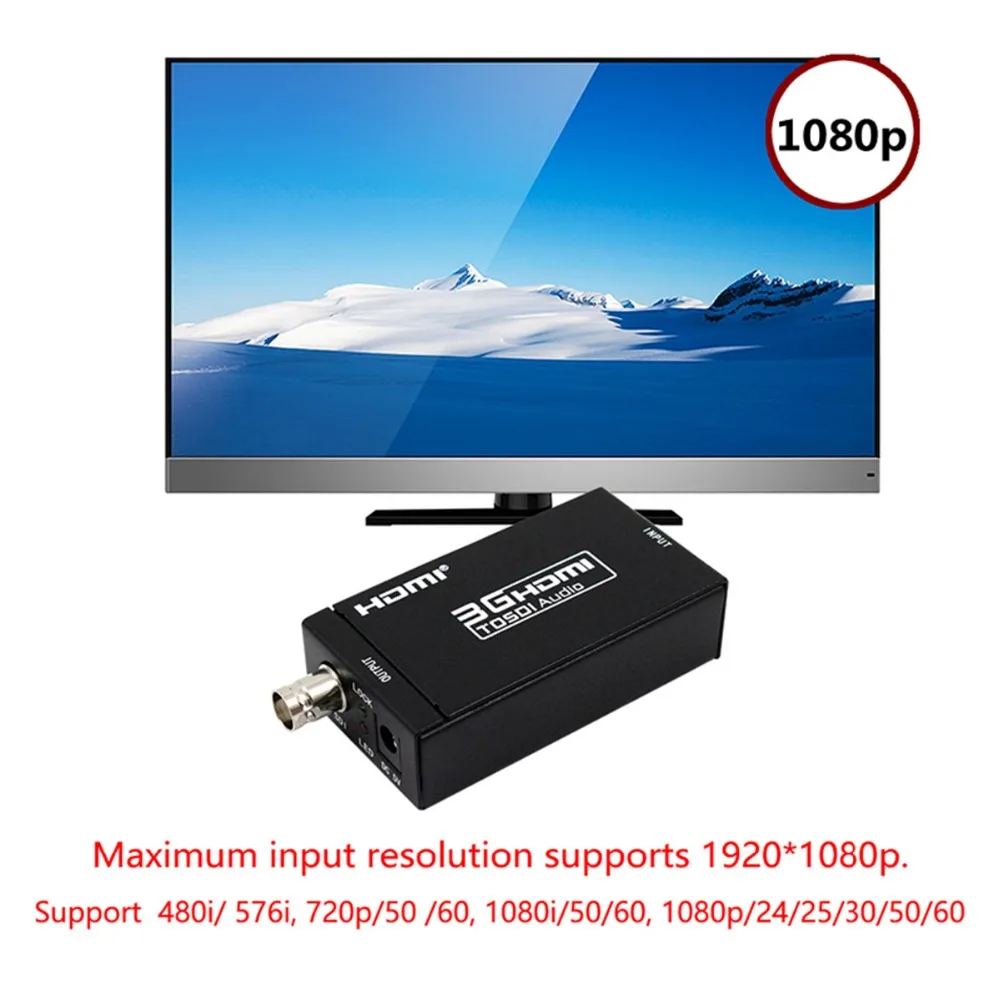

Supports HDMI input timings: 480i/ 576i, 720p/50 /60, 1080i/50/60, 1080p/24/25/30/50/60.
Converts HDMI signal to SDI:
480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Note: Do Not support Broadcast Standard.
ESD Protection Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)

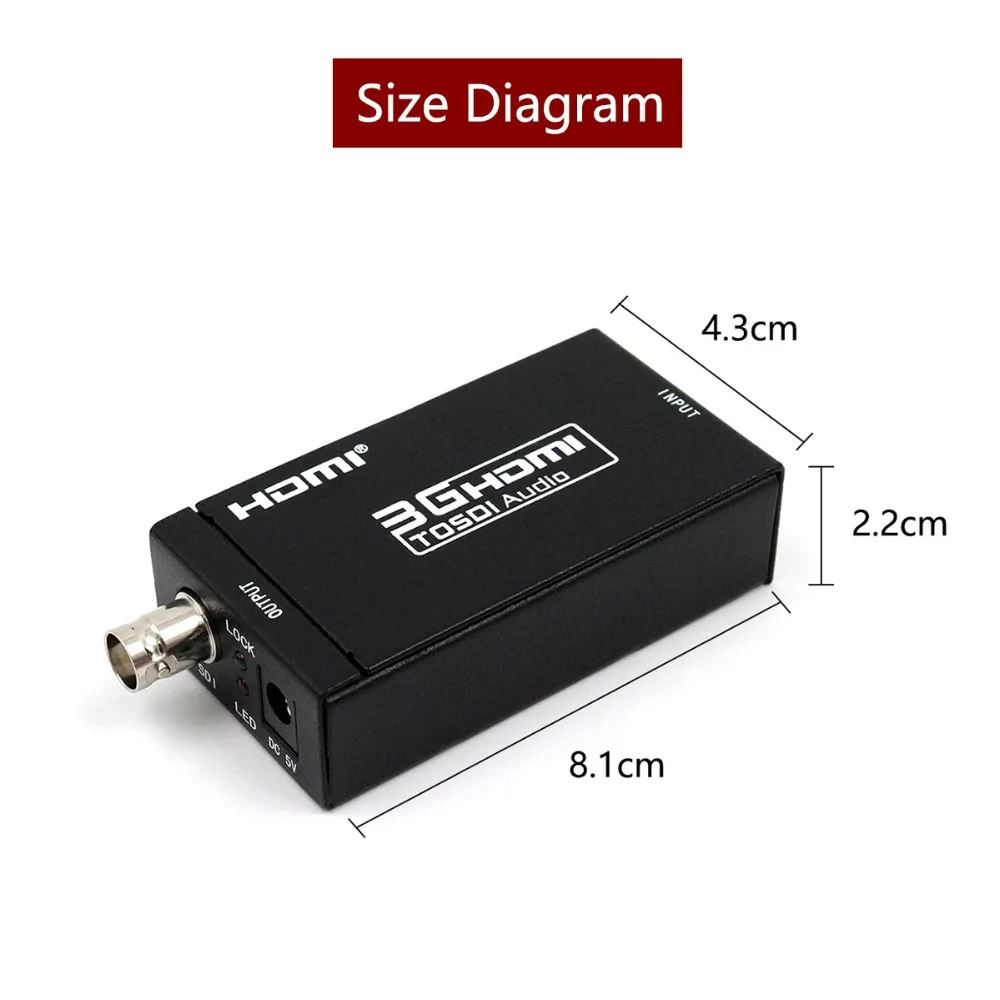

Dimension: 80mm x 41mm x 25 mm
Power Consumption (Max):5W
*Please see your order picture,the picture has the product ,we will send to you.
*1pcs Operation Manual
*1PCS power adapter

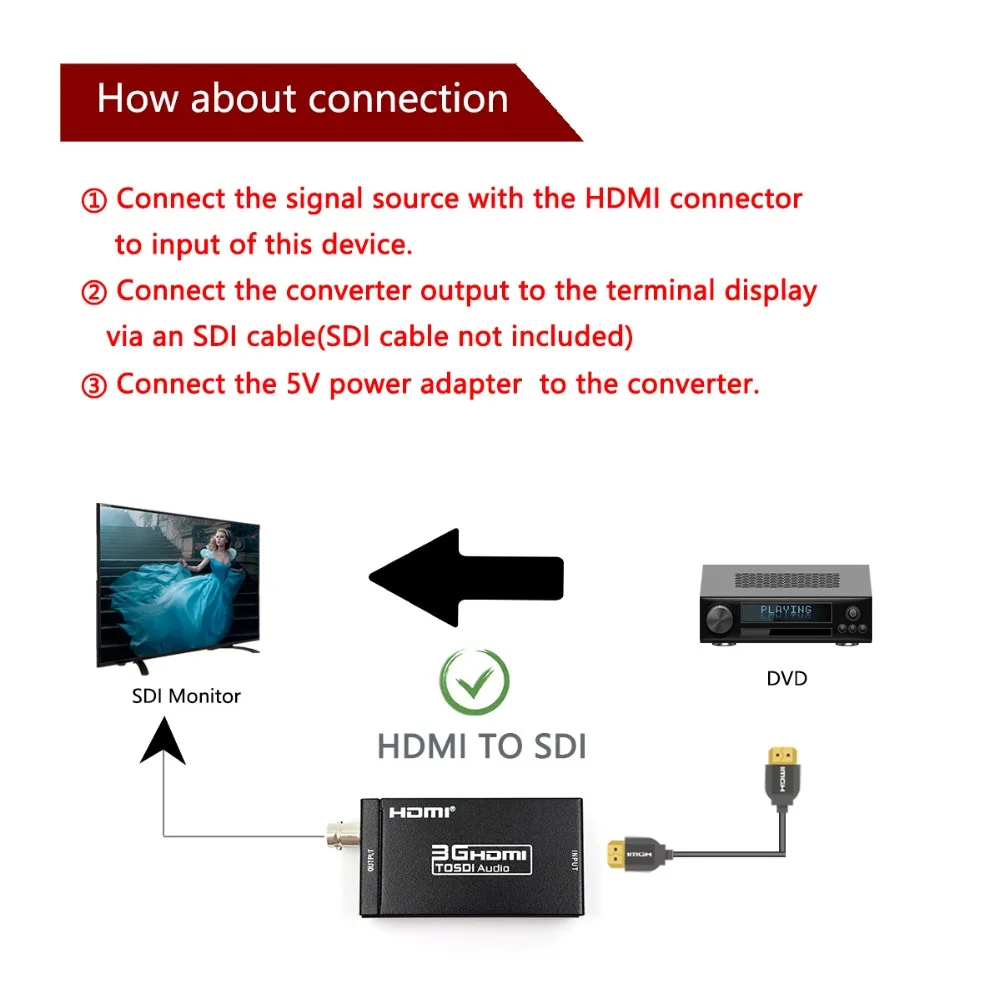

Operation controls and Functions:
SDI-OUT: This slot is where you connect the SDI display with coaxial cable .
DC IN: Plug the 5V-12V DC power supply into the unit.
HDMI IN: This slot is where you connect the HDMI source with HDMI cable.
